Die letzten westdeutschen Kleinbildcameras / Rollei QBM Mouint

QBM Mount Objektivprogramm

(c) Frank Mechelhoff update 26. Dezember 2009

Page 2: Carl Zeiss (Oberkochen) lenses for Rolleiflex SL35 (QBM) Series
In the first years of QBM-1 and -2 series all were made in Germany and marked Carl Zeiss, later Carl Zeiss HFT. It was suggested they were made by Zeiss in Oberkochen but most evidently they were build in Braunschweig at Voigtländer Optical Works, like they did with the Icarex lenses also labelled Carl Zeiss. Even later production for most lenses was transferred to Rollei Singapore under Zeiss license (Planar, Distagon, Sonnar HFT Made by Rollei, Made in Singapore). Obviously machine tools were transferred to Singapore as well (around 1973?). The more expensive lense series were kept to build in Germany under Rollei or Carl Zeiss name. In the second series (rubberished rings) very few lenses were actually made in Germany. With takeover of Optical Works Voigtländer by Rollei (1972) their old design names Color-Skoparex (wideangle), Color-Ultron (50mm) and Color-Dynarex (telephoto) were also absorbed and used, but just as additional labels for the lens designs

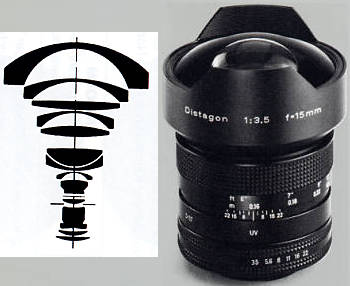

	Distagon 1:3,5/15mm Ultra Wide Angle Lens 13 lenses in 12 groups 110 degree image field 620 Grams Filter: internal, included Bay: All QBM versions HFT: From 1973 Built: 1973-1989 Zeiss Germany only Price: 1989: DM 4,880.00 #969065 (979720 with Bay QBM I)
	F-Distagon 1:2,8/16mm Fish Eye lens 8 lenses in 7 groups 180 degree image field 343 Grams Filter: internal, included Bay: All QBM versions HFT: From 1972 Built: 1972-1994 Zeiss Germany only Price: 1989: DM 1,880.00 #969770 (979670 with QBM I)
	Distagon 1:4/18mm Ultra Wide Angle Lens (origin from Zeiss Contarex lens/ 1967) 10 lenses in 9 groups 100 degree image field 350 Grams Filter: 70mm clamp-on Bay: All QBM versions HFT: From 1972 Built: 1972-1992 Zeiss Germany only Price: 1985: DM 1,998.00 #969080 (979680 with QBM I)
	Missed: 21mm Distagon lens Too big a gap between 18 and 25mm wideangle lens Zeiss had a great tradition of 21mm wideangles since L.Bertele's Biogon 4.5/21mm in Contax RF mount was introduced in 1953 Later in the 1990's Zeiss build a 2.8/21mm Distagon/ SLR lens for Contax/ Yashica mount
	Distagon 1:2,8/25mm Wide Angle Lens (origin from Zeiss Contarex lens/ 1963) 8 lenses in 7 groups 80 degree image field 310 Grams, Filter: 49mm Bay: All QBM versions HFT: From 1974 Built: 1970-1991 Zeiss Germany & Rollei Singapore & Germany Price: 1987: DM 919.00 #979530 (QBM I) #969010 (QBM II) #969300 (QBM III) #969260/265 (QBM IV)
	Distagon 1:2,0/28mm High Speed Wide Angle Lens 9 lenses in 8 groups 74 degree image field 495 Grams Filter: 55mm Bay: Only QBM IV HFT: all Built: 1982-1993 Zeiss Germany only Price: 1993: DM 2,300.00 #969470
	Distagon 1:1,4/35mm High Speed Moderate Wide Angle Lens 9 lenses in 8 groups 61 degree image field 560 Grams Filter: 67mm Bay: All QBM versions HFT: From 1973 Built: 1982-1996 Zeiss Germany only Price: 1996: DM 2,909.00 #979730 (QBM I) #969090 (QBM II) #969310 (QBM III) #969090 (QBM IV)
	Missed: Distagon 1:2/35mm High Speed Moderate Wide Angle Lens 9 lenses in 8 groups Made between 1965-1970 for Contarex mount
	Distagon 1:2,8/35mm V: Color-Skoparex Moderate Wide Lens 5 lenses in 5 groups 61 degree image field 210 Grams Filter: 49mm Bay: QBM I, II, IV HFT: From 1974 Built: 1973-1988 Zeiss Germany and Rollei Singapore & Germany Price: 1987: DM 728.00 #979570 (QBM I) #969020 (QBM II) #969320/325 (QBM IV)
	Planar 1:1,4/50mm Standard Lens - Design Karl-Heinrich Behrens, Erhard Glatzel, Patent DE2232101 of 30.06.1972 7 lenses in 6 groups 46 degree image field 230 Grams Filter: 49mm Bay: All QBM versions HFT: From 1972 Built: 1972-1993 Zeiss Germany only Price: 1993: DM 988.00 #979710 (QBM I) #969110 (QBM II) #969240 (QBM III) #969230/265 (QBM IV) same design as C/Y mount Planar
	Planar 1:1,8/50mm Opton (East Europe) V: Color-Ultron Design Erhard Glatzel/ Erwin Konschack Patent DE2114176 of 24.03.1971 Standard Lens - 7 lenses in 6 groups 45 degree image field 185 Grams Filter: 49mm Bay: All QBM versions HFT: From 1974 Built: 1970-1995 Zeiss Germany, Rollei Singapore & Germany Price: 1995: DM 378.00 #979580 (QBM I) #969250 (QBM II) #969380 (QBM III) #969380/385 (QBM IV) same design as C/Y mount Planar
	Macro Planar 1:2,8/60mm Standard Macro Lens 6 lenses in 4 groups 39 degree image field 570 Grams w/ext. tube Filter: 55mm Bay: Only QBM IV HFT: yes, only Built: 1983-1996 Zeiss Germany only Price: 1996: DM 2,654.00 #969480
	Planar 1:1.4/85mm High Speed Moderate Tele Lens - Design Heinrich Basista/ Bernhard Sonnenberg, Patent DE2315071 of 27.03.1973 6 lenses in 5 groups 29 degree image field 537 Grams Filter: 67mm Bay: All QBM versions HFT: yes, only Built: 1973-1996 Zeiss Germany only Price: 1996: DM 2,497.00 #979690 (QBM I) #969120 (QBM II) #969330 (QBM III) #969120 (QBM IV) made in Contarex and Contax/ Yashica mount as well
	Sonnar 1:2,8/85mm V: Color-Dynarex Moderate Tele Lens 4 lenses in 4 groups 29 degree image field 198 Grams Filter: 49mm Bay: Only QBM I, II & III HFT: From 1974 Built: 1970-1981 Zeiss Germany, Rollei Singapore & Germany Price: 1976: DM 238.00 #979540 (QBM I) #969030 (QBM II) #969340 (QBM III) Design differs from Sonnar 2.8/85 for Contax/ Yashica mount which has 5 elements, see here One of the most compact SLR short telephoto lenses ever build: same size and weight as the 1.8/50mm. Origin from "Contaflex 126" (28x28mm) lens 1967. Here the "Voigtländer Color-Dynarex" labeled version (QBM-2, Made in West-Germany, about 1975).
	Missed: Planar 2/100mm (or any other 100/105mm lens) High Speed Moderate Tele Lens 6 lenses in 5 groups Made for Contax/ Yashica mount

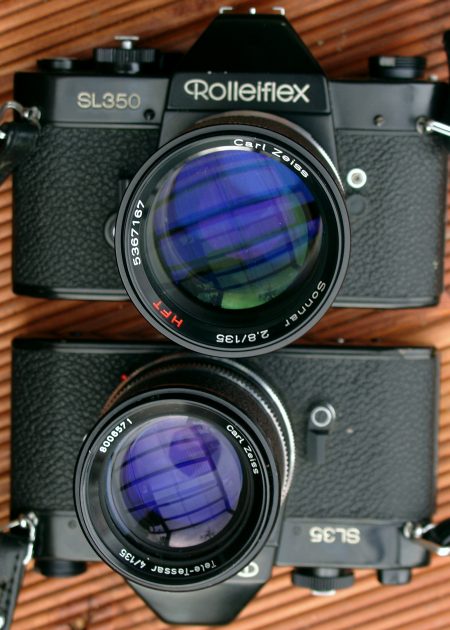

	Sonnar 1:2.8/135mm (V: Color-Dynarex) Medium Tele Lens (origin from Zeiss Contarex lens/ 1964; Erwin Konschack/ Günther Lange Patent DE1268404 - 14.11.1961) 4 lenses in 4 groups 18 degree image field 450 Grams (Series 1: 430g) incl. inbuild hood Filter: 55mm - Length: 91mm Bay: All QBM versions HFT: Yes, only Built: 1973-1987 Zeiss Germany and Rollei Singapore & Germany Price: 1987: DM 760.00 #979700 (QBM I) #969130 (QBM II) #969350 (QBM III) #969270 (QBM IV) Design differs from Sonnar 2.8/135 for Contax/ Yashica mount which has 5 elements, see here Actually the Sonnar 2.8/135mm isn't much bigger than the one stop slower Tele-Tessar. Series 1 QBM-II 2.8/135 (~1974) vs. QBM-I 4/135 (~1971) in comparison. Both are very fine German made lenses

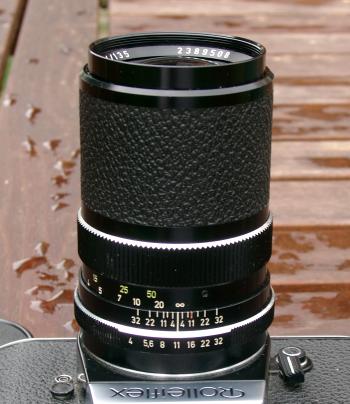

	Tele Tessar 1:4/135mm V: Color Dynarex Medium Tele Lens 4 lenses in 4 groups (somewhat simplified version of the Voigtländer Bessamatic lens) 18 degree image field 370 Grams Filter: 49mm Bay: All QBM versions HFT: From 1974 Built: 1970-1996 Zeiss Germany and Rollei Singapore & Germany Price: 1996: DM 929.00 #979550 (QBM I) #969000 (QBM II) #969360 (QBM III) #969360 (QBM IV) Voigtländer Color-Dynarex 1:4/135mm (QBM II Version) same optical design as Tele-Tessar shown above, but differs from Super-Dyarex lens (Bessamatic mount). Origin from "Contaflex 126" lens 1967. Filter 49mm, weight 370g Length 90mm Made by Rollei Singapore (~ 1976]
	Missed: Sonnar 2.8/180mm (or any fast telephoto longer than 135mm) High Speed Tele Lens 6 lenses in 5 groups Made and optically renewed 1975 for Contax/ Yashica mount (4 lenses in 4 groups: Contarex version 1966-1971)
	Tele Tessar 1:4/200mm V: Color Dynarex Tele Lens 6 lenses in 5 groups 13 degree image field 579 Grams Filter: 67mm Bay: QBM version I,II,IV HFT: From 1973 Built: 1970-1996 Zeiss Germany and Rollei Singapore & Germany Price: 1996: DM 929.00 #979560 (QBM I) #969050 (QBM II) #969370 (QBM IV) left: Series I QBM-II version with inbuild hood New, enhanced Voigtländer Super-Dynarex (Bessamatic/ Icarex) lens design, 1 element more Was also available for Contax/ Yashica mount, technical data see here
	Missed: Zooms or Telephpoto lenses longer than 200mm (reasonable priced) picture: Vario-Sonnar 2.8/40-120mm 1.000 build in 1971 for Contarex mount Filter B96 2.000g weight retail price (1970) 1,418,- DM
	Mirotar 1:4,5/500mm Super Tele Mirror Lens (the same lens was offered in Contarex mount 1963, build 200 pieces) 5 lenses in 5 groups 5 degree image field 4500 Grams Filter: slide-in, included Bay: Only QBM I HFT: no Built: 1981-1991 Zeiss Germany only Price: 1989: DM 24,000.00 (price of the same lens in Contarex mount 1970: DM 3,420,-)
	Mirotar 1:5,6/1000mm Super Tele Mirror Lens (the same lens was offered in Contarex mount 1964-1970; build 23 pieces) 5 lenses in 5 groups 2,5 degree image field 16500 Grams Filter: slide-in, included Bay: Only QBM I HFT: no Built: 1981-1991 Zeiss Germany only Price: 1989: DM 58,600.00 (price of the same lens in Contarex mount 1970: DM 12,925,-)
	Tele Tessar 1:8/1000mm Extreme Tele Lens 4 lenses in 4 groups 2,5 degree image field 8,800 Grams Filter: Bayonet VI inserted in the middle of lens Bay: Only QBM I, manual diaphragm HFT: no Built: 1983-1994 Zeiss Germany only Price: 1994: DM 44.675.00 with aluminum case
Some of the Carl Zeiss designs above were also sold from 1974-1981 with thread mount M42x1 for Voigtländer camera model VSL1TM and IBAFLEX (made by Rollei) camera model M102TM

- back to page (1) : Zeiss QBM lenses (Start) -

- back to Rolleiflex SL350 -

- next page (3) : Schneider and Rolleinar QBM lenses -
